Royal Caribbean Productions

During 2014-2017 I worked in the studio of production designers Gerry Hariton and Vicki Baral, creating color renderings, paint elevations, draftings, and other design elements for numerous productions aboard Royal Caribbean cruise ships. Below are some of my favorites, all created in Vectorworks and Photoshop. Content on this page is property of Hariton-Baral Design and Royal Caribbean Productions.



3D MODELS

3D model of the International Space Stations set piece from Flight (Symphony of the Seas).
Created in Vectorworks with custom textures created in Photoshop.



3D model of the Wright Flyer set piece from Flight (Symphony of the Seas).
Created in Vectorworks.

DRAFTING

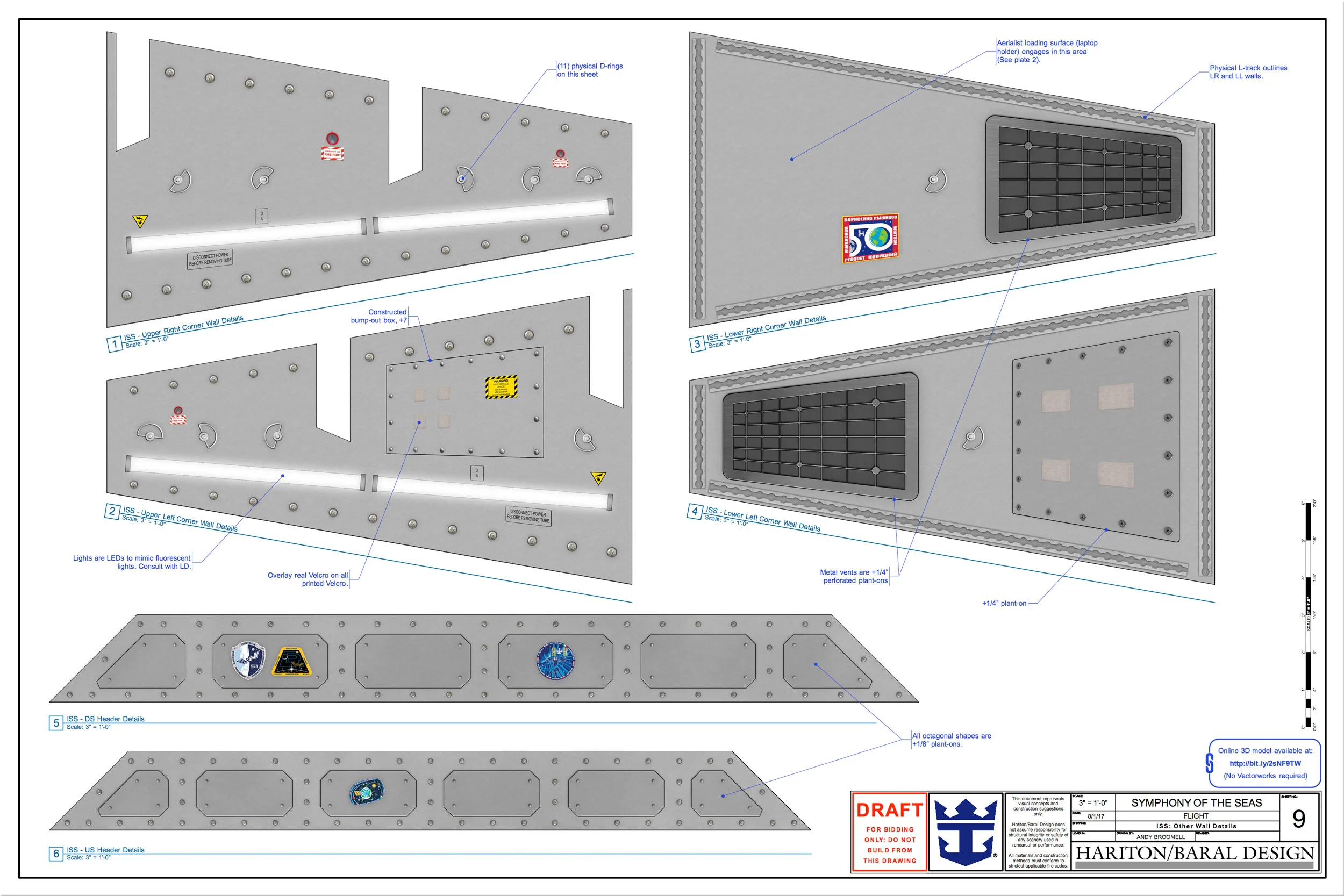

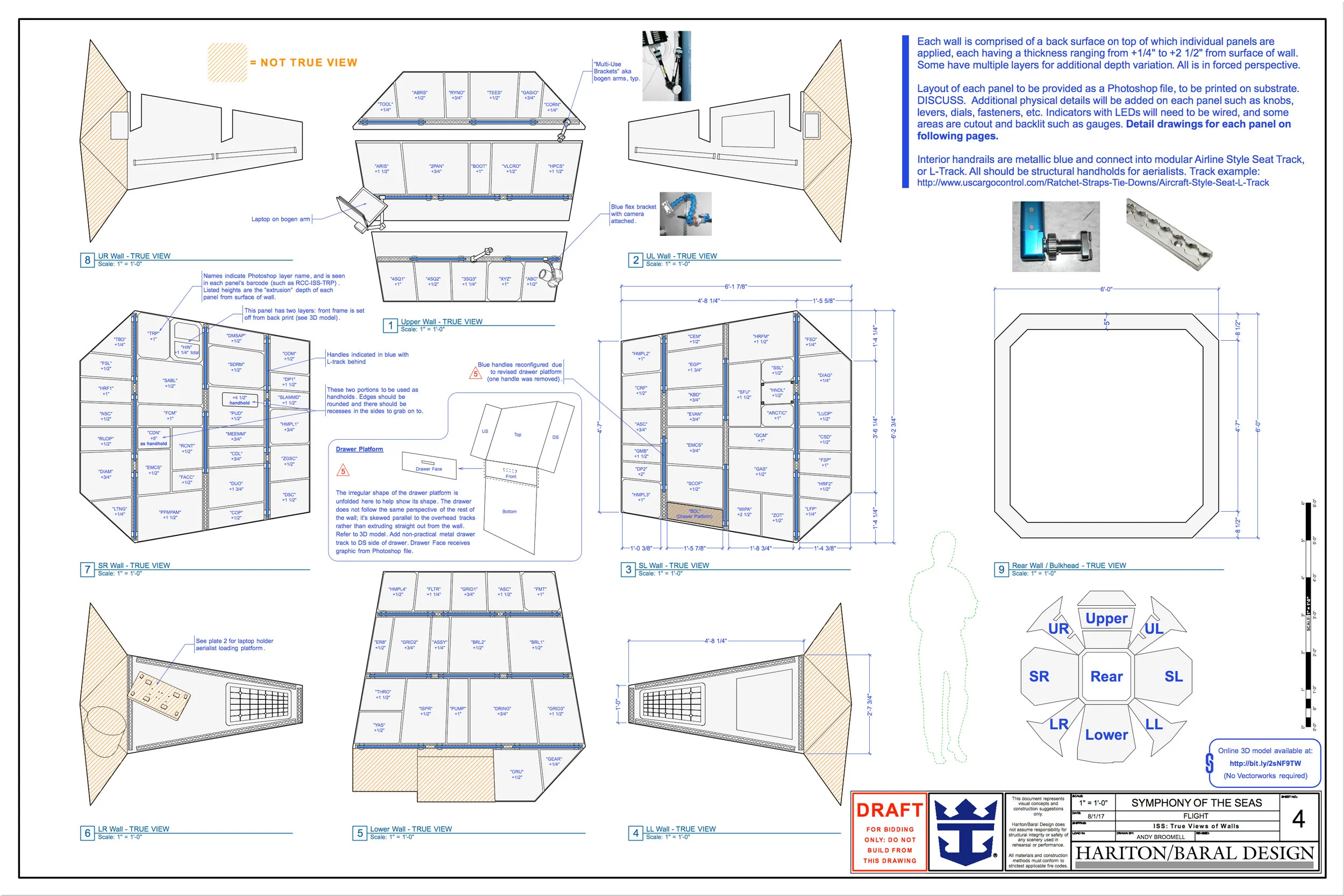

Drafting of International Space Station Unit for Flight (Symphony of the Seas), created in Vectorworks.
Forced perspective graphics created in Photoshop.

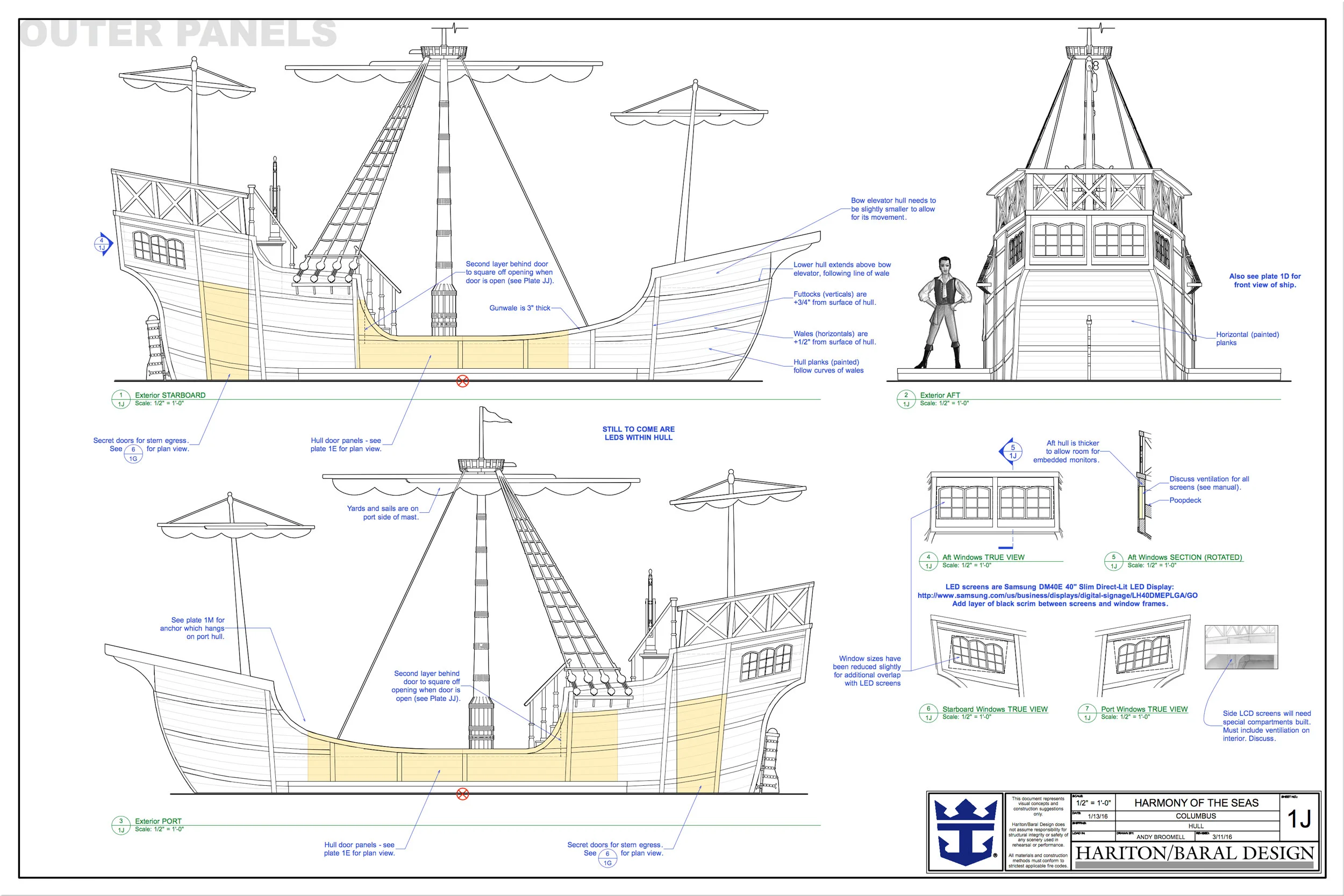

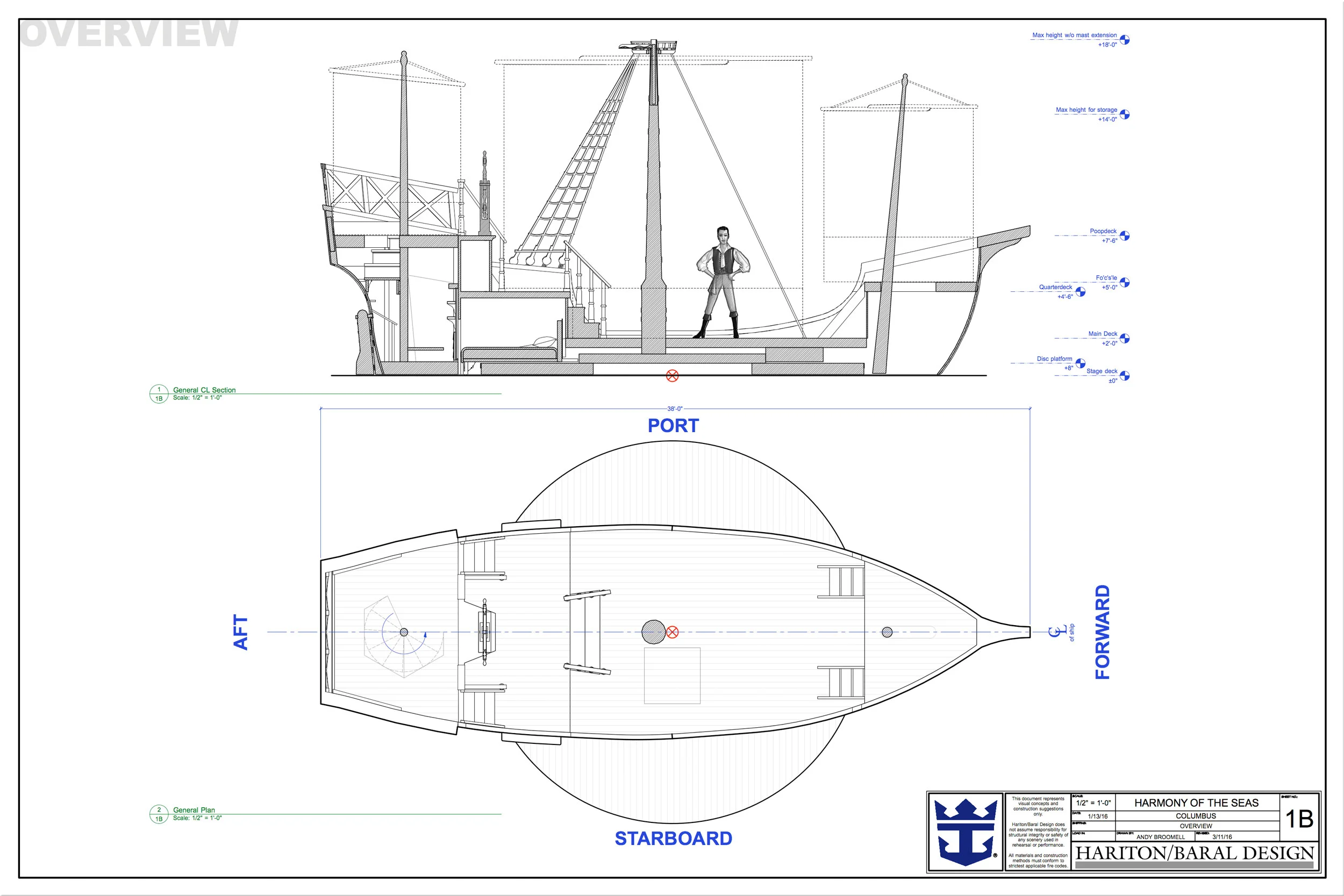

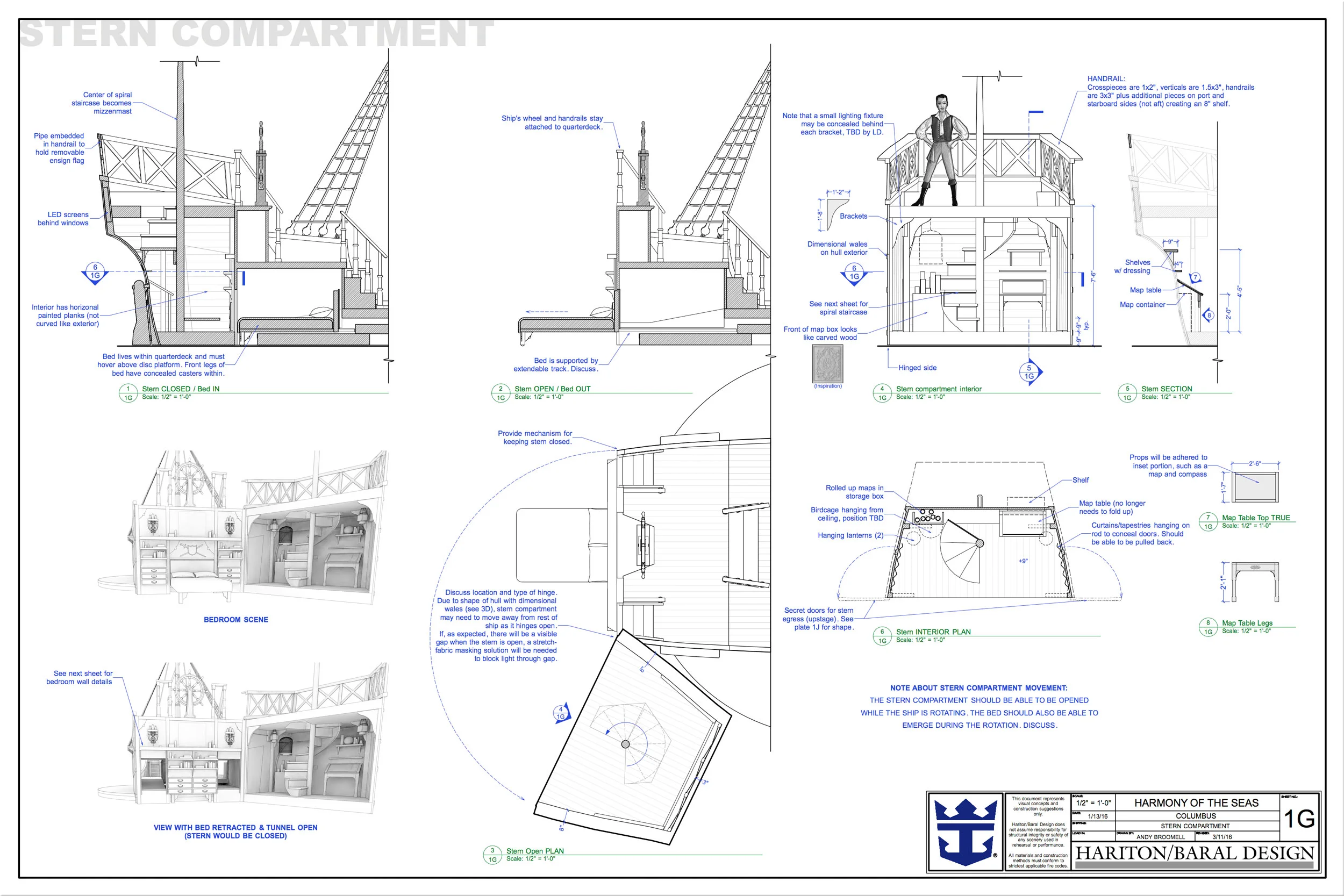

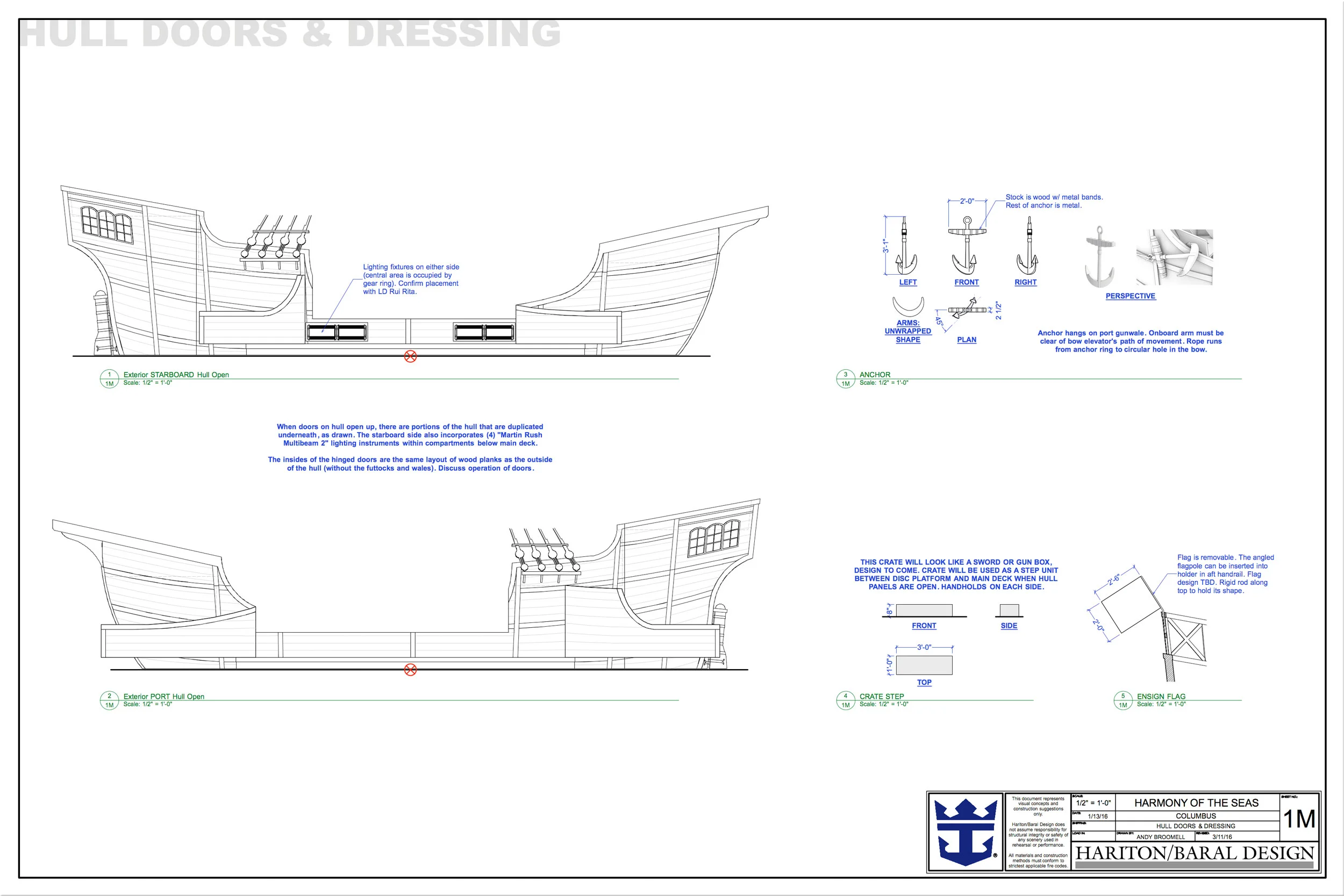

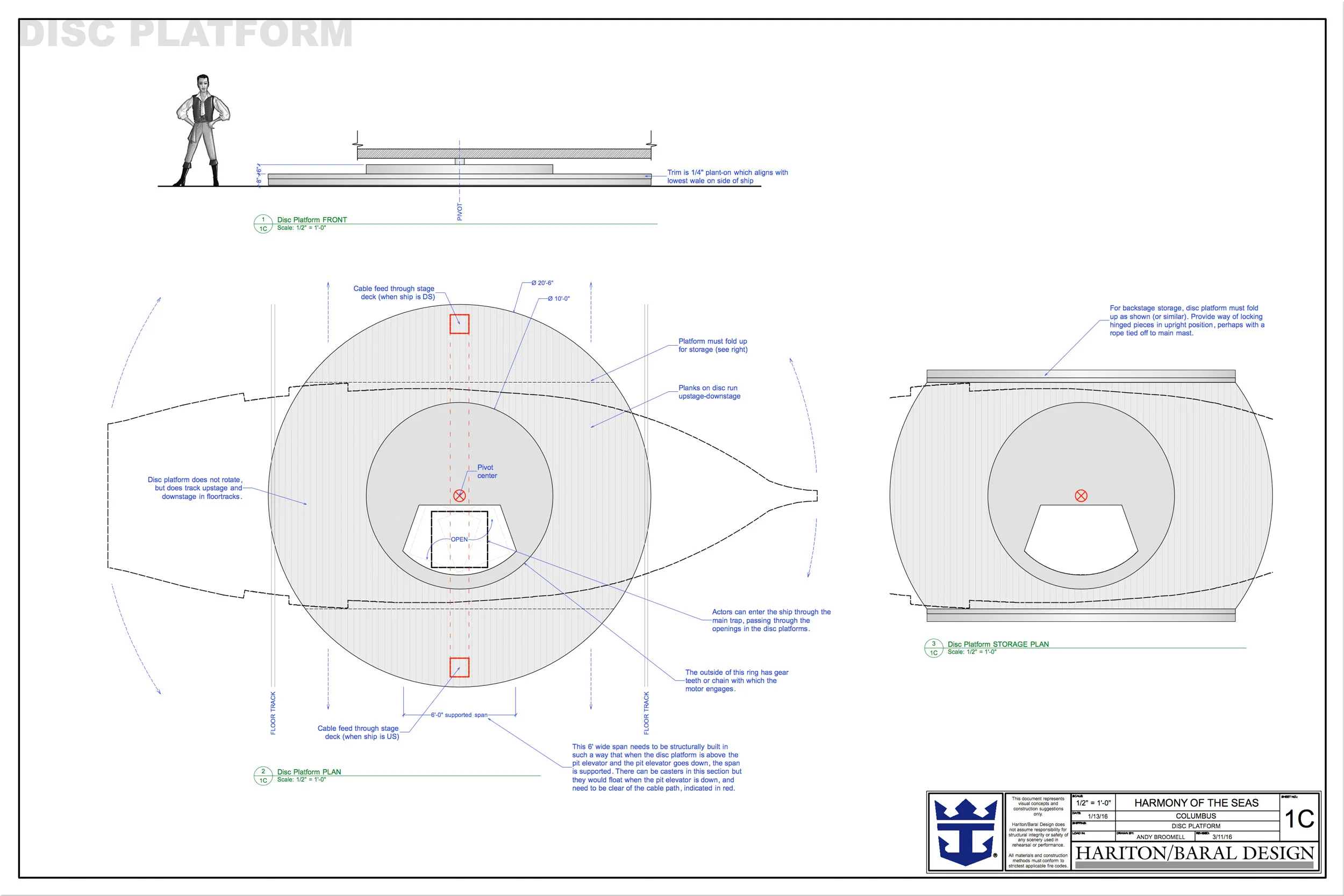

Drafting of main set piece for Columbus: The Musical! (Harmony of the Seas), created in Vectorworks.

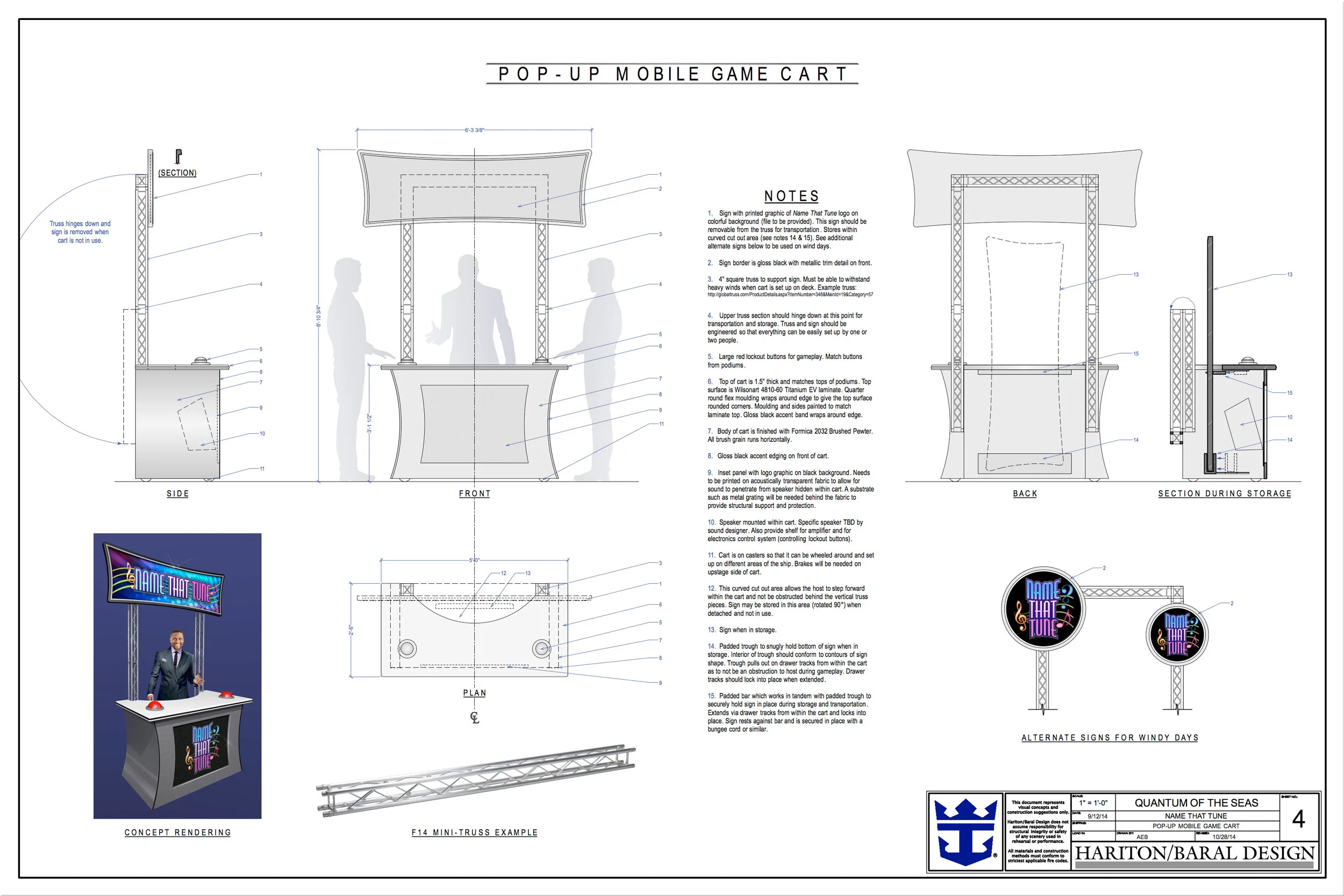

Drafting of scenic units for Name That Tune interactive game show (Quantum of the Seas & Anthem of the Seas).
Created in Vectorworks.



RENDERINGS




Design rendering of the "Chronocycle" for The Gift (Anthem of the Seas) and The Dream (Ovation of the Seas).
Rendered in Vectorworks with smoke and lighting effects added in photoshop.


 Scenic design rendering for Columbus: The Musical! (Harmony of the Seas).

Scenic design rendering for Columbus: The Musical! (Harmony of the Seas).
[Photoshop painting work on this rendering by Sid Bingham, on top of Vectorworks rendering.]


 Interior bedroom scenic design rendering for Columbus: The Musical! (Harmony of the Seas).

Interior bedroom scenic design rendering for Columbus: The Musical! (Harmony of the Seas).


 Scenic design rendering for  Name That Tune  (Quantum of the Seas & Anthem of the Seas).

Scenic design rendering for Name That Tune (Quantum of the Seas & Anthem of the Seas).



COLOR ELEVATIONS

 GEAR APPARATUS  The Dream  (Ovation of the Seas)

GEAR APPARATUS - Paint Elevation
The Dream (Ovation of the Seas)



  DOCKYWARDS LOCOMOTIVE   The Gift   (Anthem of the Seas) and   The Dream   (Ovation of the Seas)


DOCKYARDS LOCOMOTIVE - Paint Elevation
The Gift (Anthem of the Seas) and The Dream (Ovation of the Seas)



 ENCHANTED GRANDFATHER CLOCK  The Gift  (Anthem of the Seas)


ENCHANTED GRANDFATHER CLOCK - Paint Elevation
The Gift (Anthem of the Seas)


 HAREM WALL  The Dream  (Anthem of the Seas)

HAREM WALL - Paint Elevation
The Dream (Anthem of the Seas)


 SHOW PORTAL  The Gift   (Anthem of the Seas) and   The Dream   (Ovation of the Seas)

SHOW PORTAL - Paint Elevation
The Gift (Anthem of the Seas) and The Dream (Ovation of the Seas)


 TUGBOAT  The Dream   (Ovation of the Seas)

TUGBOAT - Composite Paint Elevation
The Dream (Ovation of the Seas)


 HARD ROCK CAFE  We Will Rock You  (Anthem of the Seas)

HARD ROCK CAFE - Composite Paint Elevation
We Will Rock You (Anthem of the Seas)


 FLYING MACHINE Columbus: The Musical! (Harmony of the Seas)

FLYING MACHINE - Sketch/Paint Elevation
Columbus: The Musical! (Harmony of the Seas)



SCENE CHANGE PLANS

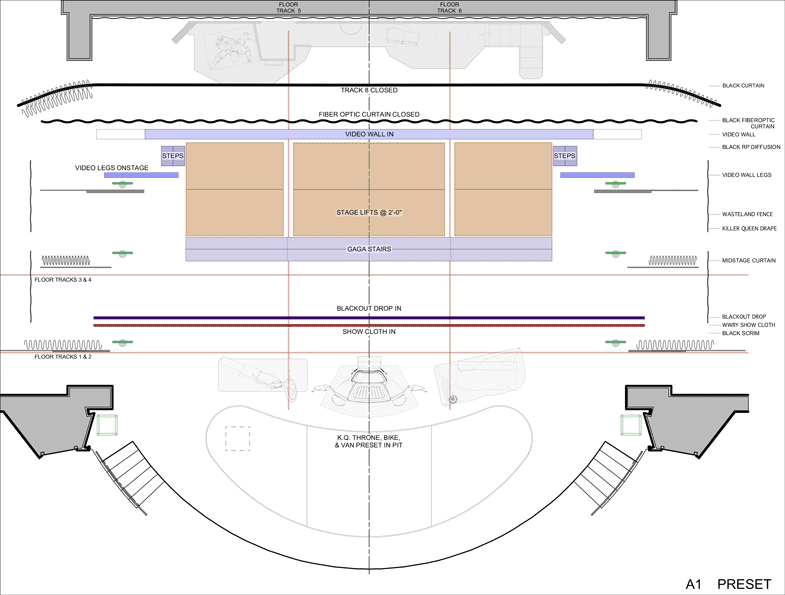

 Scene change plans for  We Will Rock You  (Anthem of the Seas).

Pre-production scene change plans for We Will Rock You (Anthem of the Seas), created in Vectorworks.

[Want to learn how to do this in VW? Send me an email]


  Scene change plans for   Sequins & Feathers 2   (Ovation of the Seas).

Pre-production scene change plans for Sequins & Feathers 2 (Ovation of the Seas), created in Vectorworks.



GRAPHICS FOR PRINTED DROPS

 CANDY PORTAL  Sequins & Feathers  (Quantum of the Seas)

CANDY PORTAL
Sequins & Feathers (Quantum of the Seas)


 HAREM BACKDROP The Gift (Anthem of the Seas)

HAREM BACKDROP
The Gift (Anthem of the Seas)
